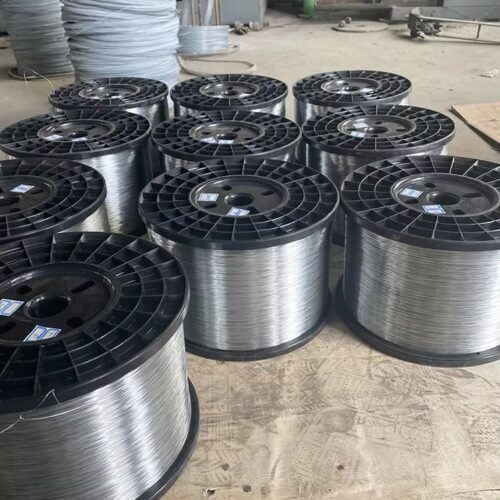

ER5356 Aluminum Welding Wire Spool — High Joint Strength & Stable Arc

In search of an elite manufacturing factory for high-yield ER5356 Aluminum Welding Wire supplies? Shandong Gangpu Metal Products Co., Ltd. delivers premium-grade 5356 alloy MIG spools, TIG welding rods, and customized structural welding consumables expertly engineered to satisfy strict dimensional tolerances, reliable chemistry, and flawless feedability compliant with international AWS A5.10 specifications.

Engineering & Material Insights: The ER5356 Aluminum Welding Wire Core

The ER5356 Aluminum Welding Wire represents the absolute global standard for high-strength MIG and TIG joining of marine, automotive, and structural aluminum alloys. Belonging to the Al-Mg (Aluminum-Magnesium) family, its physical capabilities are driven by the precise inclusion of approximately 5% Magnesium. This high magnesium concentration provides a solid-solution strengthening network that delivers a dramatic surge in ultimate tensile and shear strength in the post-weld zone. This specific duralumin matrix makes ER5356 Aluminum Welding Wire the optimal selection for welding 5000 and 6000-series parent metals, ensuring high weld joint toughness with excellent resistance to mechanical cracking.

For automated weld fabricators and robotic welding cells, continuous feedability and arc stability are the most critical parameters. Standard uncalibrated wires often contain surface micro-pits or heavy residual drawing lubricants, which clog feeding liners and trigger weld porosity. Shandong Gangpu’s premium inventory undergoes a specialized double-shaving process followed by precision layer winding. This mechanical shaving strips away any brittle surface oxide layer and drawing contaminants. The result is a highly polished, clean surface that ensures low sliding friction through MIG torch liners, giving you a completely stable welding arc and zero wire burn-backs during continuous robotic production cycles.

ER5356 Aluminum Welding Wire Technical Specifications

Technical Parameters	Specifications & Capabilities
Alloy Grade	ER5356 / AlMg5Cr(A) / AWS A5.10 ER5356
Material Profile	Precision ER5356 Aluminum Welding Wire, Spooled MIG Wire, and Cut-Length TIG Rods
Diameter Range	0.8mm, 0.9mm, 1.0mm, 1.2mm, 1.6mm (Custom large diameters available for TIG)
Shielding Gas	100% Argon or Argon/Helium mixtures (For deep penetration on thick plates)
Weld Joint Strength	Typical tensile strength ≥ 280 MPa (Excellent post-weld joint durability)
Available Packaging	6kg/spool, 7kg/spool (S300/D300 plastic spools), 5kg/carton (TIG rods), and bulk drum packs
Quality Certificates	TUV, CE, DB, ISO 9001, and ABS marine approval certifications standard

Chemical Composition (%)

Al	Mg	Mn	Cr	Ti	Fe	Si	Cu
Bal.	4.5 – 5.5	0.05 – 0.20	0.05 – 0.20	0.06 – 0.20	≤ 0.40	≤ 0.25	≤ 0.10

Key Features of Our ER5356 Aluminum Welding Wire

• Stable Arc & Low Bead Splattering: Every precision-wound ER5356 Aluminum Welding Wire spool is treated to provide a smooth, low-spatter arc, significantly reducing post-weld cleanup and grinding labor.
• Elite Surface Cleanliness & Feedability: Subjected to a proprietary chemical wash and shaving process, eliminating all drawing oil residue to guarantee zero porosity in critical weld seams.
• High Joint Tensile Performance: Formulated with a balanced Al-Mg-Mn chemistry, ensuring high yield properties and excellent structural rigidity in dynamic applications.

Major Industry Applications

• Shipbuilding & Marine Infrastructure: Welded marine hull structures, boat docks, deck rails, chemical liquid containers, and offshore platform supports.
• Automotive & Structural Transportation: Aluminum vehicle frame welding, truck cargo body assemblies, specialized trailer gates, and fuel tank structural brackets.
• Heavy Mechanical Equipment & Jigs: Overhead crane structures, cryogenic processing tanks, architectural support beams, and customized high-strength welding setups using spooled ER5356 Aluminum Welding Wire stock.

Export Packaging & Global Delivery

To protect high-precision aluminum welding wire from humidity, which can trigger oxidation and weld defects, Shandong Gangpu strictly enforces vacuum-sealed packing protocols. Each plastic spool of ER5356 Aluminum Welding Wire is wrapped in heavy-gauge moisture-proof polymer film alongside active desiccant packets, then boxed in durable, drop-resistant cardboard cartons.

Cartons are securely stacked onto fumigated export wooden pallets, shrink-wrapped, and bound with high-tensile strapping bands. Our global logistics team handles container securing to guarantee completely risk-free ocean transit to shipyards and industrial warehouses. Verifiable Material Test Certificates (MTC) tracking chemical heat chemistry are standard.

Frequently Asked Questions About ER5356 Aluminum Welding Wire

Q1: Why is an explicit ER5356 Aluminum Welding Wire preferred over ER4043 for marine welding?
A1: Marine environments expose weld joints to highly aggressive saltwater environments. While ER4043 is an exceptional general-purpose silicon-alloyed welding wire with great fluid flow, it has lower joint strength and has poor resistance to corrosion under continuous seawater exposure. A premium ER5356 Aluminum Welding Wire integrates roughly 5% Magnesium, which delivers significantly higher shear strength and superior protection against saltwater pitting, making it the industry standard for marine structures.

Q2: How does your factory prevent wire tangles and bird-nesting in high-speed automatic MIG wire feeders?
A2: Automatic wire feeders are highly sensitive to winding irregularities and surface friction. Shandong Gangpu utilizes advanced computerized precision layer winders to spool our ER5356 Aluminum Welding Wire. This ensures each row of wire is laid out with perfect tension and alignment, preventing crossover overlaps. Coupled with our micro-shaved surface treatment to lower wire friction, this ensures smooth, continuous wire feeding on your high-speed robotic press lines.
