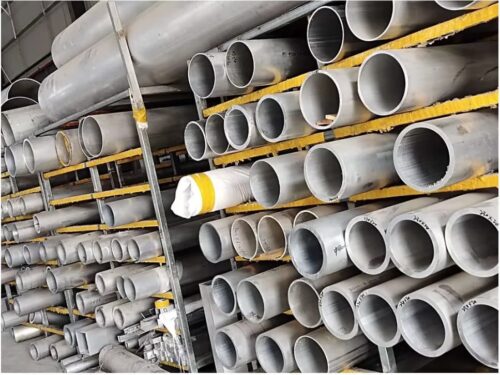

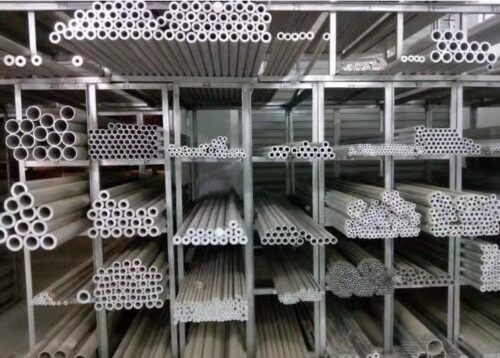

5083 Marine Grade Seamless Aluminum Pipe — Severe Corrosion Resistance

In search of a highly reliable manufacturing factory for high-yield 5083 Aluminum Pipe supplies? Shandong Gangpu Metal Products Co., Ltd. delivers high-end 5083 marine-grade aluminum hollow tubes, true seamless extruded pipes, and custom structural sleeve solutions expertly engineered to satisfy strict dimensional tolerances, reliable pressure containment, and superior anti-corrosion endurance compliant with international ASTM B241 standards.

Engineering & Material Insights: The 5083 Aluminum Pipe Magnesium Matrix

The 5083 Aluminum Pipe represents the absolute global standard for heavy-duty structural marine engineering, cryogenic fuel storage, and defense manufacturing. Belonging to the 5000-series Al-Mg-Mn (Aluminum-Magnesium-Manganese) metallurgy family, its exceptional mechanical capabilities rely on an elevated Magnesium concentration (ranging from 4.0% to 4.9%), supplemented with precise fractions of Manganese and Chromium. This strategic chemical formulation builds a highly stable solid-solution strengthening network that provides a dramatic surge in ultimate tensile strength under ambient and cryogenic temperatures. This microcrystalline structure allows the 5083 Aluminum Pipe to maintain its structural yield boundaries under severe cyclic mechanical loading and high-impact conditions without brittle failure.

For shipyard engineers, cryogenic vessel designers, and naval architects, sourcing a certified seamless 5083 Aluminum Pipe is paramount to preventing catastrophic structural failures. Standard porthole-extruded or welded tubes contain structural weld seams that act as weak atomic boundaries under intense hydraulic pressures or heavy structural stress. Shandong Gangpu’s premium 5083 Aluminum Pipe inventory undergoes seamless piercing extrusion processing followed by precise multi-roll rotary straightening and stabilization heat treatments (H116/H321 tempers). This process eliminates microstructural continuous beta-phase precipitation along grain boundaries, ensuring your framework components avoid dangerous intergranular corrosion, exfoliation, or deep chloride pitting when exposed directly to harsh, turbulent ocean environments.

5083 Aluminum Pipe Technical Specifications

Technical Parameters	Specifications & Capabilities
Alloy Grade	5083 / AlMg4.5Mn0.7 / AA5083 / EN AW-5083
Material Profile	Structural Marine-Grade 5083 Aluminum Pipe, Seamless Cryogenic Conduit, and Heavy Wall Sleeves
Outer Diameter (OD)	10mm – 500mm (Precision instrumentation tubes to massive ship fuel distribution lines)
Wall Thickness (WT)	1.0mm – 50mm (Strictly monitored concentricity and uniform wall metrics)
Available Tempers	H111, H112, H116 (Premium exfoliation resistance), H321, O (Soft Annealed)
Quality Inspections	Ultrasonic Flaw Detection (UT), Hydrostatic Test, Intergranular Corrosion Test (ASTM G67)
Classification Certificates	DNV, ABS, CCS, LR, GL, BV mill register tracking records standard

Chemical Composition (%)

Al	Mg	Mn	Cr	Fe	Si	Cu	Zn
Bal.	4.0 – 4.9	0.40 – 1.0	0.05 – 0.25	≤ 0.40	≤ 0.40	≤ 0.10	≤ 0.25

Key Features of Our 5083 Aluminum Pipe

• Severe Saltwater Corrosion Shielding: Specially treated to eliminate grain-boundary continuous precipitation network formations, ensuring absolute resistance to seawater pitting and active ambient spray damage.
• Flawless Seamless Pressure Integrity: Manufactured via solid billet piercing rather than welding, each 5083 Aluminum Pipe delivers isotropic pressure containment, exceptional concentricity, and higher safe burst limits.
• Cryogenic Mechanical Excellence: Does not exhibit a ductile-to-brittle transformation threshold, making it the premier material selection for liquefied natural gas (LNG) pipe routing and chemical sub-zero infrastructure.

Major Industry Applications

• Shipbuilding & Marine Infrastructure: Marine hull internal fluid networks, offshore drilling platform railings, desalination plant conduits, and commercial yacht mast pillars.
• Cryogenic Storage & LNG Transfer: Double-walled pipeline distribution networks for liquefied natural gas, high-pressure processing vessels, and extreme sub-zero thermal transport systems.
• Heavy Industrial & Chemical Process Piping: Corrosive acid transport conduits, high-yield municipal wastewater aeration systems, and military structural equipment frameworks.

Export Packaging & Global Delivery

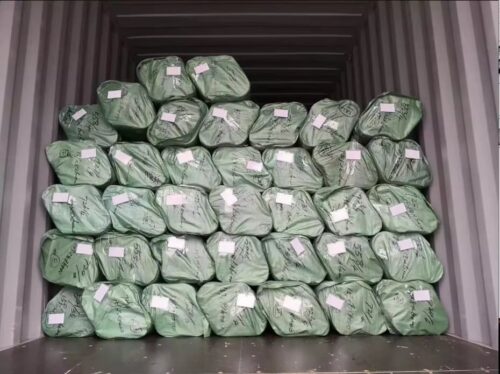

Every commercial cargo volume of marine-grade profiles managed by Shandong Gangpu strictly complies with heavy-duty transoceanic transit guidelines. Pipes are individually bundled with protective moisture-proof interleaving wrapping, sleeved in non-abrasive plastic shields to avoid handling friction, and nested inside reinforced fumigated wooden crates or steel-strapped crates.

Our logistics division installs custom structural chocking frameworks inside shipping containers to guarantee complete zero-movement parameters over rough ocean routes. Full Material Test Reports (MTR/MTC) detailing heat numbers, casting chemistry, and non-destructive pressure certifications are fully provided standard with your customs manifests.

Frequently Asked Questions About 5083 Aluminum Pipe

Q1: Why are H116 or H321 tempers explicitly specified for a marine 5083 Aluminum Pipe over standard O or H112 states?
A1: When 5000-series alloys with more than 3.5% Magnesium are subjected to prolonged stress or heat, magnesium tends to precipitate as a continuous beta-phase network along grain boundaries. This network is highly susceptible to intergranular and exfoliation corrosion in saltwater. Ordering a premium 5083 Aluminum Pipe in H116 or H321 tempers ensures the material undergoes a specialized thermal stabilization process that breaks up this beta-phase stringer network, protecting the integrity of your marine structure.

Q2: How does your factory guarantee zero internal metallurgical defects for high-pressure seamless 5083 Aluminum Pipe lines?
A2: High-pressure fluid routing and cryogenic containment lines leave zero margin for structural defects. At Shandong Gangpu, we subject all seamless hollow profiles to rigorous non-destructive testing (NDT) before dispatch, including full-length ultrasonic flaw detection (UT) and pneumatic pressure sweeps. This process screens for micro-voids, porosity, or wall thinning, ensuring that each shipped pipe matches the exact pressure containment requirements of your industrial design blueprints.
