3105 Aluminum Alloy Coil Stock — Pre-painted Base & Closure Applications

In search of an elite manufacturing factory for structural 3105 Aluminum Coil supplies? Shandong Gangpu Metal Products Co., Ltd. delivers high-end 3105 manganese-magnesium alloyed aluminum sheet rolls, wide pre-painted substrate coils, and 3105 Aluminum Coil strip solutions expertly engineered to satisfy strict dimensional tolerances, reliable coating adhesion, and superior stamping endurance compliant with international ASTM B209 specifications.

Engineering & Material Insights: The 3105 Aluminum Coil Composition

The 3105 Aluminum Coil serves as the global industrial benchmark for specialized pre-painted aluminum substrates, residential rain-carrying systems, and high-speed bottle closure manufacturing. Belonging to the 3000-series Al-Mn-Mg (Aluminum-Manganese-Magnesium) alloy family, its physical capabilities are driven by the precise balance of Manganese and Magnesium additions. This duralumin matrix yields a material with moderate mechanical tensile and yield strength limits, roughly 15% stronger than standard 3003 alloys. This strategic chemical balance guarantees that the 3105 Aluminum Coil maintains outstanding dent resistance while preserving the extreme core material ductility needed for cold-forming.

When sourcing a premium 3105 Aluminum Coil for continuous color-coating lines or automated closure press systems, surface cleanliness and grain alignment are absolutely critical. Standard commercial coils often contain surface oil residue or directional anisotropy, causing uneven paint wetting or earing defects during stamping. Shandong Gangpu utilizes advanced degreasing lines and computerized continuous annealing technology. This ensures the coil has a pristine, tension-leveled surface and isotropic mechanical forming properties, allowing high-speed closure machines to run continuously with zero cracking or paint flaking.

3105 Aluminum Coil Technical Specifications

Technical Parameters	Specifications & Capabilities
Alloy Grade	3105 / AlMn0.5Mg0.5 / AA3105 / EN AW-3105
Material Profile	Industrial-Grade 3105 Aluminum Coil, Pre-painted Base Stock, and Closure Strips
Thickness Range	0.2mm – 4.0mm (Precision thin foils to heavy structural siding coils)
Width Profiles	15mm – 1600mm (State-of-the-art narrow custom slitting capabilities)
Elongation Rate	≥ 20% (Excellent elongation and ductility in soft annealed states)
Available Tempers	H14, H24 (Most common for pre-painted panels), H16, H18, H26, O
Inner Core (ID)	150mm, 300mm, 400mm, 505mm (Paper, steel, or aluminum cores)

Chemical Composition (%)

Al	Mn	Mg	Fe	Si	Cu	Zn	Cr
Bal.	0.30 – 0.80	0.20 – 0.80	≤ 0.70	≤ 0.60	≤ 0.30	≤ 0.25	≤ 0.20

Key Features of Our 3105 Aluminum Coil

• Premium Paint Adhesion & Corrosion Resistance: Every batch of our 3105 Aluminum Coil stock is processed with advanced chemical washing to guarantee uniform surface energy, promoting outstanding adhesion with PE and PVDF systems.
• Superb Deep Stamping Performance: Features a highly uniform grain structure that prevents earing and localized thinning during severe high-speed draw press cycles.
• Excellent Slitting Edge Quality: Computerized circular blades slice master coils into narrow, burr-free ribbons to prevent continuous die wear in automated production lines.

Major Industry Applications

• Bottle Closures & Caps: Rolled-on pilfer-proof (ROPP) bottle caps, high-precision cosmetic bottle closures, and pharmaceutical vial seals.
• Pre-painted Architectural Facades: Color-coated aluminum rain gutters, roof valley flashings, residential siding panels, and architectural ceiling grids.
• Automotive & Industrial Housing: Stamped structural heat shields, vehicle acoustic insulation backplates, electrical enclosure stampings, and signboards.

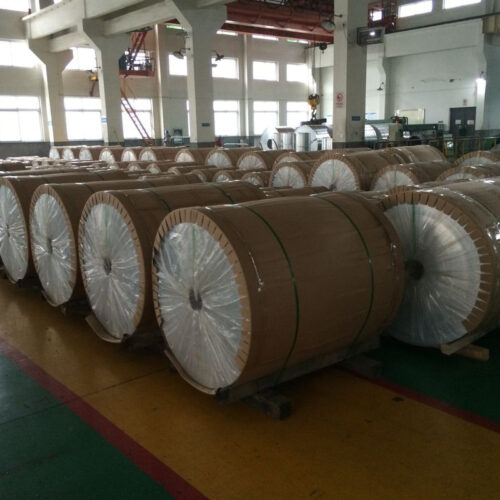

Export Packaging & Global Delivery

Every commercial cargo volume of 3105 Aluminum Coil products managed by Shandong Gangpu follows strict international maritime preservation guidelines. Depending on your automatic uncoiler setup or warehouse crane requirements, coils can be packaged securely in “Eye to Sky” (vertical axis alignment) or “Eye to Wall” (horizontal axis alignment) configurations on reinforced fumigated timber pallets.

The coils are completely enclosed in heavy-duty multi-layer waterproof polymer film alongside active desiccant packs to eliminate transoceanic condensation and oxidation damage. Heavy structural timber bracing is anchored inside the shipping containers to prevent load shifting over rough ocean routes. Verifiable Mill Test Certificates (MTC/MTR) accompany every cargo manifest.

Frequently Asked Questions About 3105 Aluminum Coil

Q1: For bottle closure manufacturing, why is a 3105 Aluminum Coil preferred over standard 1100 pure aluminum?
A1: Bottle caps and ROPP closures must withstand high sealing torque and maintain high thread integrity during packaging. While 1100 pure aluminum offers exceptional material ductility, its low yield strength makes the finished caps prone to stripping or thread deformation under automatic capping heads. A premium 3105 Aluminum Coil incorporates manganese and magnesium to increase structural hardness, providing the rigid mechanical properties needed to ensure secure bottle sealing.

Q2: How does your factory guarantee burr-free edges on narrow 3105 strip stock for automatic winding or stamping lines?
A2: Continuous high-speed closure stamping is highly sensitive to side burrs, which can scratch dies and cause uneven metal drawing. At Shandong Gangpu, we run specialized slitting lines to process 3105 Aluminum Coil down to specialized narrow strip configurations. Our circular blade cutters are calibrated to keep side-burrs and edge waviness to a minimum (typically ≤0.05mm), preventing tooling wear and ensuring a smooth material feed.
