In search of an elite manufacturing factory for structural 6061 T6 Aluminum Round Bar? Shandong Gangpu Metal Products Co., Ltd. delivers high-end 6061-T6 aluminum solid rod and round bar supplies expertly engineered to satisfy strict dimensional tolerances, reliable straightness criteria, and superior CNC high-speed milling metrics compliant with international ASTM B211 standards.
Engineering & Material Insights: The 6061-T6 Mg-Si Matrix
The 6061-T6 aluminum round bar represents the absolute backbone of structural machine shop components worldwide. Belonging to the 6000-series Al-Mg-Si (Aluminum-Magnesium-Silicon) family, its structural capabilities rely on the precise stoichiometric balancing of magnesium and silicon to form the Mg2Si (Magnesium Silicide) precipitate phase. When subjected to the rigorous T6 temper protocol—which includes high-temperature solution heat treatment followed by uniform artificial aging—these microscopic precipitates distribute evenly throughout the crystal lattice. This metallurgical matrix yields a dramatic surge in yield strength, bringing excellent mechanical load bearing to a lightweight raw material.
For automatic lathe operators and high-speed CNC machinists, two parameters are absolutely critical: machinability and bar straightness. Standard uncalibrated commercial rods often cause massive tool vibrations or material deflection. Shandong Gangpu’s 6061-T6 round bars undergo specialized mechanical straightening and precision drawing processes. This keeps internal residual stresses uniform, preventing the bar from bowing or twisting during intensive outer-diameter peeling or deep internal drilling. The chip-breaking performance is exceptional, ensuring clean, brittle curls that don’t clog tools or gall the cutting inserts.
6061 T6 Aluminum Round Bar Technical Specifications
| Technical Parameters | Specifications & Capabilities |
|---|---|
| Alloy Grade | 6061 / AlMg1SiCu / AA6061 / HE20 |
| Material Type | Structural Solid Round Bar, Precision Extruded Rod, and Machining Stock |
| Diameter Range | 3mm – 500mm (Ultra-wide diameter cold-drawn or hot-extruded options available) |
| Standard Lengths | 2000mm, 3000mm, 6000mm, or exact bandsaw cut-to-length blanks |
| Straightness Tolerance | ≤ 0.5mm/m (High-precision straightness for automated bar feeders) |
| Available Tempers | T6, T651, T4, O (Annealed) |
| Surface Finish | Bright cold drawn, smooth centerless ground, or industrial mill finish |
Chemical Composition (%)
| Al | Mg | Si | Cu | Cr | Fe | Mn | Zn |
|---|---|---|---|---|---|---|---|
| Bal. | 0.8 – 1.2 | 0.4 – 0.8 | 0.15 – 0.40 | 0.04 – 0.35 | ≤ 0.70 | ≤ 0.15 | ≤ 0.25 |
Key Features of 6061 T6 Aluminum Round Bar
- Outstanding Machine Tool Responsiveness: Features highly stable hardness, allowing high-speed CNC turning, continuous indexing, and crisp thread tapping without gumming.
- Premium Straightness and Minimal Deviation: Meticulously processed to prevent whip or wobble in high-RPM bar feeders, protecting Swiss-turn and multi-axis lathe spindles from unnecessary wear.
- Excellent Hardness-to-Weldability Balance: Delivers robust mechanical properties alongside reliable structural fusion via conventional TIG or MIG protocols.
Major Industry Applications
- Precision CNC Components: Machined electronic connectors, hydraulic pistons, valve bodies, fasteners, gears, shafts, and automotive hardware.
- Automation & Heavy Tooling: Robotic arm structural components, factory conveyor frameworks, customized automation jigs, and complex indexing plates.
- Structural & Aerospace Frameworks: Marine structural pillars, structural transport truck frames, architectural bracing, and aircraft assembly fixtures.
Export Packaging & Global Delivery

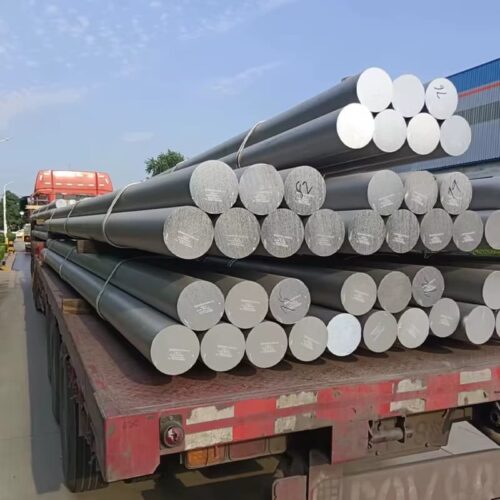

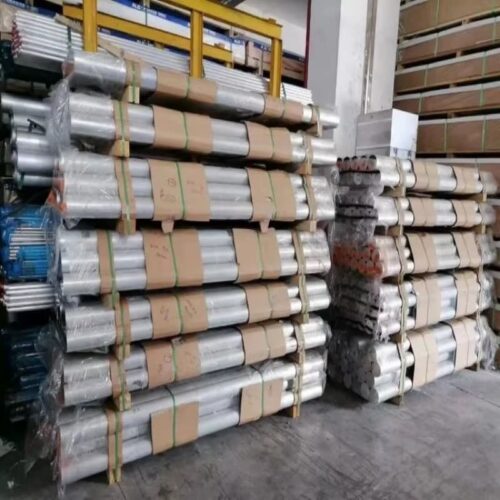

Every commercial grade 6061 T6 aluminum round bar delivery managed by Shandong Gangpu strictly complies with reinforced ocean freight guidelines. Bars are bundled securely with protective nylon wrapping, nested inside heavy-duty fumigated wooden crates or reinforced moisture-proof boxes, and tightly tensioned using high-yield industrial metal strapping bands.
Our logistics team implements customized timber-bracing matrices inside sea containers to achieve a total zero-movement state during ocean transit. Full Material Test Reports (MTR/MTC) detailing precise heat-number chemical analyses are provided with all customs documents. Third-party testing (SGS, BV, TUV) is fully supported.
Frequently Asked Questions About 6061 T6 Aluminum Bar
Q1: Why choose a 6061-T6 aluminum round bar over 7075-T6 for general machine shop components?
A1: While the 7075-T6 alloy delivers higher absolute surface hardness and ultimate tensile thresholds, it is far more expensive and significantly harder to weld or form. The 6061-T6 aluminum round bar offers an ideal balance of robust mechanical strength, excellent corrosion resistance, superior welding versatility, and excellent machine tool responsiveness at a highly competitive wholesale price point—making it the cost-effective standard for general engineering applications.
Q2: How does your factory handle straightness validation for high-speed automatic bar feeding?
A2: We understand that automatic lathe bar feeders are extremely sensitive to material straightness. Shandong Gangpu utilizes advanced multi-roll rotary precision straightening machinery. Every batch of cold-drawn precision 6061-T6 rods is verified to meet or exceed strict tolerances (≤0.5mm per meter). This strict quality control prevents spindle vibration and maintains dimensional stability during aggressive, high-RPM material removal.
